Datasheet - Long Range Stick EcoTag transponder

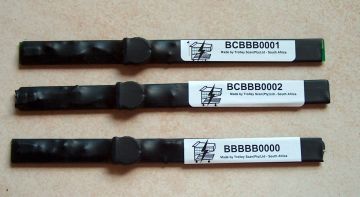

Stick sized tags


Size 160 by 12 mm by 3mm
Operating frequency 868-870MHz(GSM)
Operating power 5uW RF power @868-870MHz(GSM)
5uW RF power @900-930Mhz(US)
Antenna aperture 149 sq cms @868-870MHz(GSM)
134 sq cms @900-930Mhz(US)
Transponder power structure Tags are battery assisted from onboard battery with power switch
Antenna gain 2.1dB
Polarisation Linear
Multiple transponder environment Up to 50 in the field
Packaging Laminated sleeve
Air protocol Trolleyponder®(RIST)
Programming Factory pre-programmed
Part number 8000-0700 @868-870MHz
Manufacturer Trolley Scan (Pty) Ltd
South Africa
